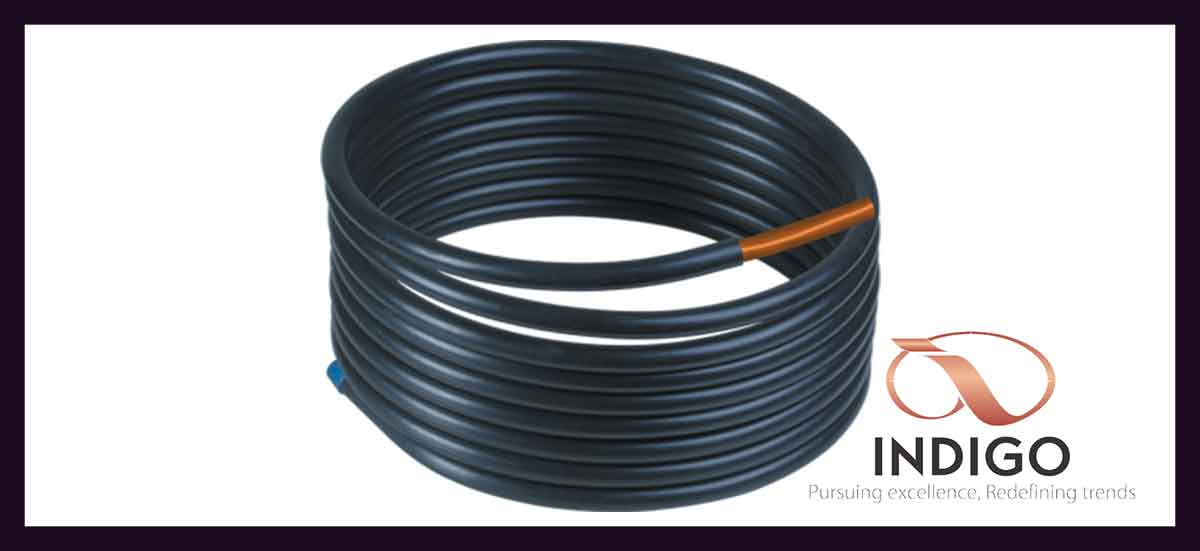

PVC Coated Copper Tubes (ARAI Approved)

PVC Coated Copper Tubes (ARAI Approved)

Indigo Metalloys manufacture high quality PVC coated copper tubes & copper coils designed for protection against aggressive environment and colour coded to aid identification. Copper tube with a PVC sheath may be an effective method of protection against attack in harsh operating conditions.

The PVC is tightly extruded onto the tube and is available in black, white, blue, yellow and green colours according to customer requirements. Material used to coat copper tubes is polyvinylchloride (PVC) of the following characteristics.

Copper tubes meet the specifications of international standards like ASTM-B-75/68 and UNS C12200. Tests are conducted as per specification for Physical & Mechanical properties & Chemical Composition. ECT is conducted for bare tubes. Finally, PVC Coating is done as per ASTM-D-1047. PVC Coated tube is ensured leak proof after conducting pressure drop test.

PRODUCT APPLICATION AREAS

  • LPG Gas Kits
  • Oil & Gas Industries
  • Instrumentation Industries
  • Plumbing & Drainage

    • Standard Sizes, thickness of copper tube and PVC can be as per requirement. Other sizes as per requirement subject to our confirmation can be manufactured.

    Technical Specification

    Sizes

    1/8”(3.2mm) OD to 1"(25.4mm)OD

    Length

    In cut length from 2 mtr to 14 mtr
    In continues length from 15 mtr to 1000 mtr

    Temper

    0 for soft coils H/HH for straight pipes

    Application

    Instrumentation, Gas Lines, Gen Engineering CNG/LPG kit Industry, Refineries

    P.V.C Thickness

    0.5 mm to 2 mm

    P.V.C Colour

    Blue/Black/White or any colour per customer choice

    Advantages

    Extra resistance, prevents corrosion, enhances life span of tubes
